Since 2018, the HERM Material Lift & Conveyor has been an industry game-changer for business owners and contractors.
The 2024/25 HERM Ultra260 represent the 3rd iteration (Mk3), the evolution and our continued commitment to design and manufacture of ‘fit-for- purpose’ equipment within the HERM WorkSMART – WorkSAFE framework.
1 x (110/120V 60Hz) or (230/240V 50Hz) electric winch. Includes
32m anti-rotation wire-rope (Load capacity: 25,5kN),
2 x limit-switch (to be connected to Module A and Module E),
9 x spring electromagnetic failsafe brake,
1 x 10m/32ft wired pendent control &
1 x 100m/328ft Wireless (Remote) Control.
Operating Power (Selection Option)
AU 230v/240v 50hZ with AUS/NZ Type 1 3pin power plug
EU 230v/240v 50hZ with EU Type 1 3pin power plug
UK 230v/240v 50hZ with UK Type 1 3pin power plug
US 110v/120v 60hZ with US/Canada Type B 3pin power plug

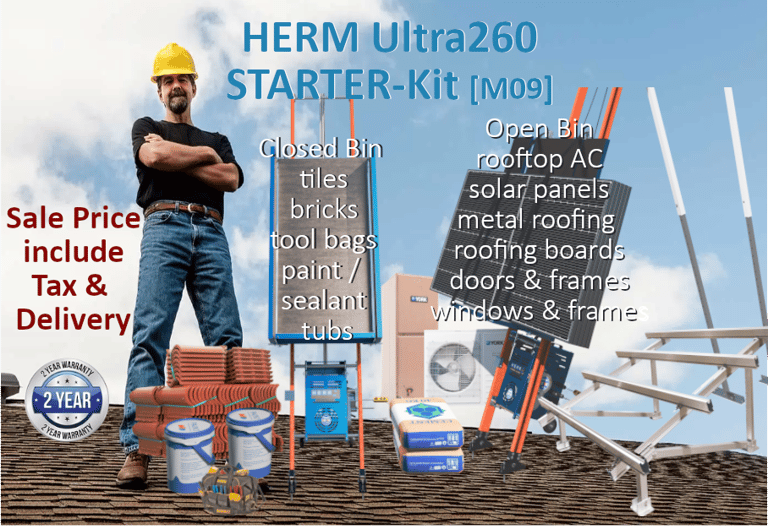

M09 Starter-Kit Equipment List
Starter-Kit
[M09]
Ideal Usage: >2 Storie Building
Kit Length: 9.6m / 31.5ft
Module A: 1 x 2m/6.5ft Base Frame Module
Module B: 1 x 2m/6.5ft Extension Frame Section
Module C: 1 x 1.5m/4.9ft Extension Frame Section
Module D: 1 x 1m/3.2ft Extension Frame Section
Module E: 1 x 1.5m/4.9ft End-Frame Module
Module F: 1 x 1.6m/5.2ft Articulating Eave Module
Module H: 1 x Roof Support Frame (“A” Frame)
Module L: 1 x Cargo Chassis/Cart (Standard: AS1418.8 / Cl. 3.5.4)
Module M: 1 x Cargo / Multipurpose Material Transporter
M12 Plus Extension
With M12 Plus, you can extend the M09 Starter Kit from 9.6m/31.5ft to a maximum length of 12.6m/41.3ft ... equivalent to 3 stories COMM/RESS building.
Module B: 1 x 2m/6.5ft Extension Frame Section
Module D: 1 x 1m/3.2ft Extension Frame Section
Module G: 1 x “I” Frame Rooftop (or Level) Support (Module)
Module J: 1 x 2pce 4.0m/13.1ft Ground Support Prop (Module)
Module K: 1 x 2pce Wall Support Prop (Module)
M12 Extension Equipment List
Extend Lift Reach from 9.6m to 12.6m / 41.3ft
M16 Plus Extension
Extend Lift Reach from 9.6m to 16.6m / 54.5ft
With M16 Plus, you can extend the M09 Starter Kit from 9.6m/31.5ft to a maximum length of 16.6m/54.5ft ... equivalent to 4 stories COMM/RESS building.
Module B: 2 x 2m/6.5ft frame extensions
Module C: 1 x 1.5m/4.9ft frame extension
Module D: 1 x 1m/3.2ft frame extension
Module G: 2 x “I” Frame Rooftop (or Level) Support Modules
Module I: 1 x 3pce 6.0m/19.1ft Ground Support Prop Module
Module J: 1 x 2pce 4.0m/13.1ft Ground Support Prop Module
Module K: 1 x 2pce 1.5m/4.9ft Wall Support Prop Module
M16 Extension Equipment List
Most
Popular
Extension
Pick
Module B: 3 x 2m/6.5ft frame extensions
Module C: 1 x 1.5m/4.9ft frame extension
Module D: 2 x 1m/3.2ft frame extensions
Module G: 3 x “I” Frame Rooftop (or Level) Support Modules
Module I: 1 x 3pce 6.0m/19.1ft Ground Support Prop Module
Module J: 1 x 2pce 4.0m/13.1ft Ground Support Prop Module
Module K: 1 x 2pce 1.5m/4.9ft Wall Support prop Module
M22 Extension Equipment List

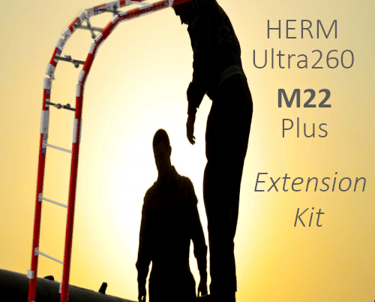

With M22 Plus, you can extend the M09 Starter Kit from 9.6m/31.5ft to a maximum length of 22.6m/74.2ft ... equivalent to 5 stories COMM/RESS building.
Extend Lift Reach from 9.6m to 22.6m / 74.2ft
M22 Plus Extension
