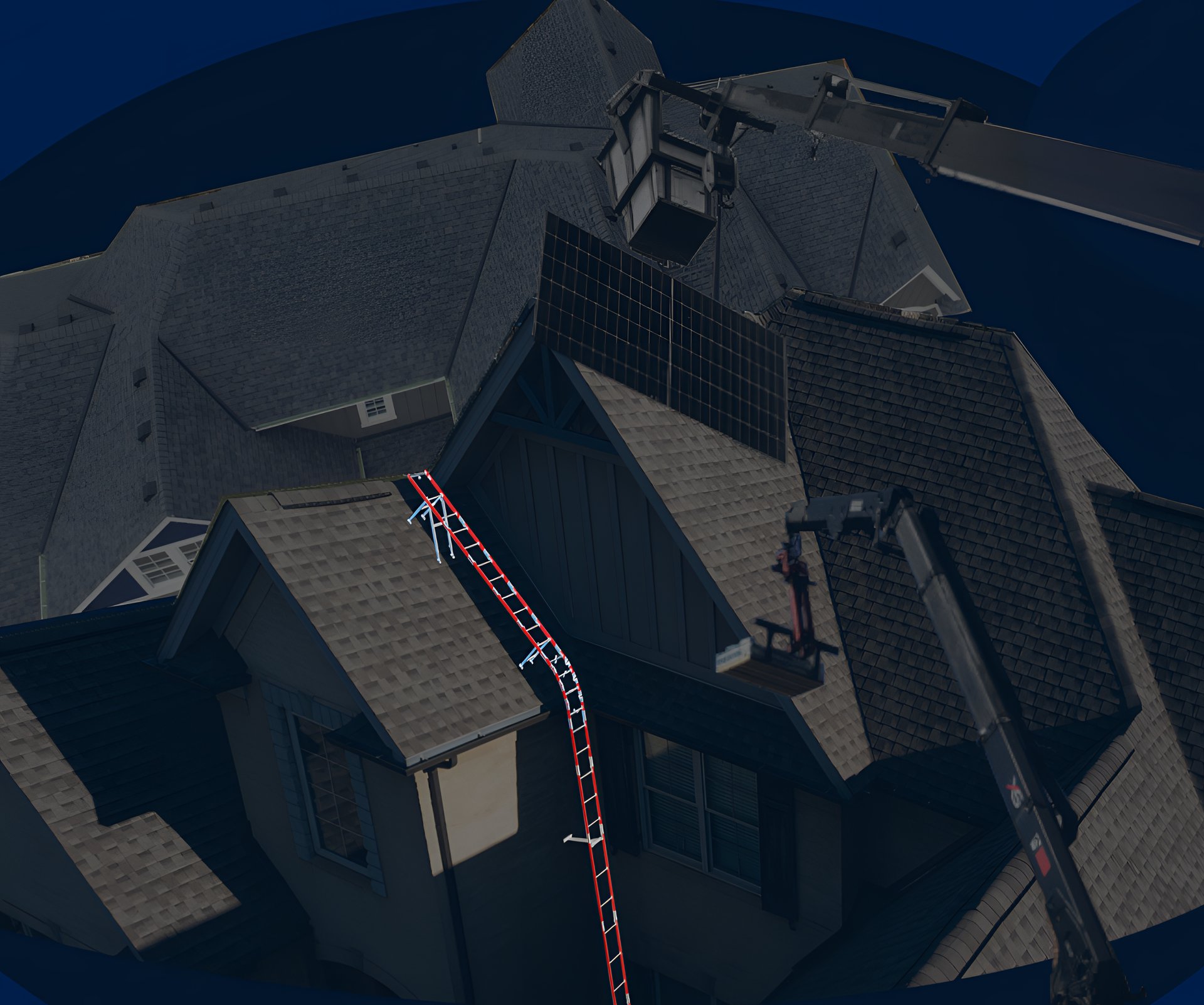

The HERM Material Lift System
Agile, Robust and Portable - the go-anywhere material transporter for all building works!
As an Industry 4.0 and ISO9000 Certified manufacture, the HERM lift-conveyor frame is fabricated with industrial FRP. By applying pultrusion technology, the custom designed frame is structurally stronger and lighter than the equivalent aluminum and/or steel lift frames offered by our competitor. [Standards Compliance AS1418.8, EN131, ANSI-ASC A14,5-2017]
Easy to transport from site-to-site, quick to assemble ... and No Tools are required!
The Base Module (“A”) includes a lean-angle indicator, non-slip swivel footings and ground anchor points.
Eave Module (“E”) can be adjusted and set to match any roof pitch angle ... from 5/deg's up.

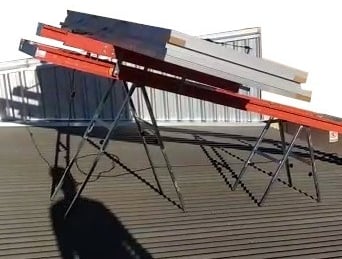

As a lift-conveyor, the HERM is ideal for all types of commercial and residential building works. From roofing to solar, from renovation to HVAC, the quick and easy to set-up narrow-gauge frame combined with extendable chasses and multi-purpose cart/bin will expediate the transport (up/down) of materials, fixtures, fittings from/to rooftops and through access points that is wide enough to transport these materials. i.e. window, balcony,
Design & Engineering Australia & German
Manufacturing Brazil, China & Malaysia (USA: 2025)
Standards Compliance ISO9000, AS1418.8, EN131, ANSI-ASC A14,5-2017
HERM Mk3 Ultra lite
Wall Support Brace
Extended Chassis.
To support the transport of larger materials, the HERM chassis can be extended from Extend:1.5m/4.9ft to 2.9m/9.5ft.
Lower Ground
Support Brace
As a manufacture of WorkSMART and WorkSAFE solutions, the HERM Lift-conveyors are designed, built and approved to comply with stringent ANZ, CE/EU, US. standards.
Integrated into the chassis, is a mechanical 'Cable Break Brake System'. IF/Should the 6mm anti-rotation, 25,5kN wire cable was to fail, for any reason, the break will activate. *Standard Equipment
Australian Standard
AS1418.8 / Cl 3.5.4
Cable Break Brake Solution
I N A C T I V E Brake ......................... [ System Safety ] ......................... A C T I V E Brake
Anything that can go wrong will go wrong, and at the worst possible time!
HERM Ultra lite - Mk3 - Standard Pricing
Effective January 2024
Step 2: Plus Kit ... You have 3x Choices
- M12, or M16, or the M22 that is " just Right "
for your business!
Step 1: Order the STARTER Kit ... this is the base kit
Contractors, you can own the HERM M16 Combo Kit for as tittle as $9.59/per day ...
the cost of 2 Dunkin's Donut Cappuccio's
- for more information, speak to your Accountant or Financial Advisor
O P E N
Module ("M")

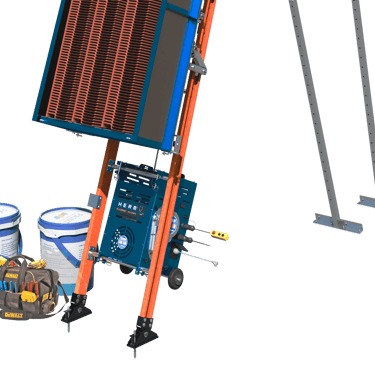

C L O S E D
Module ("M")

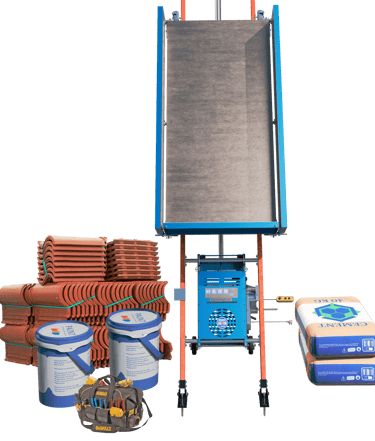

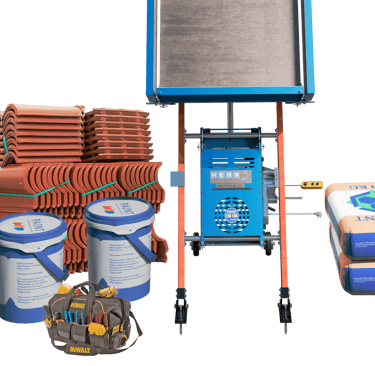

Transport Application Tiles, Tools, Bricks, Cement Bags, ... anything up to 250kg/551lbs that can be secured in the bin for transport.
Cubic Volume: .33m/cube | 11.79ft/cube
H: 30cm/11.8" x W: 74cm/29.2" x L: 150cm/59"

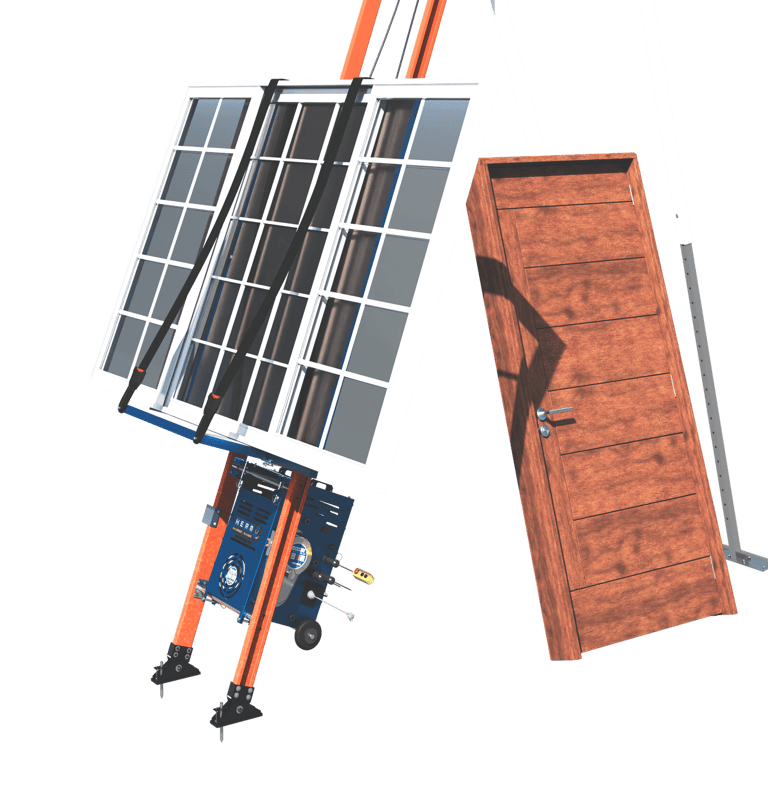

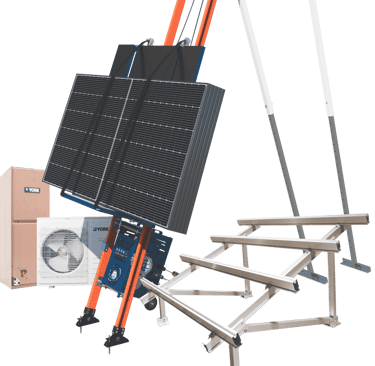

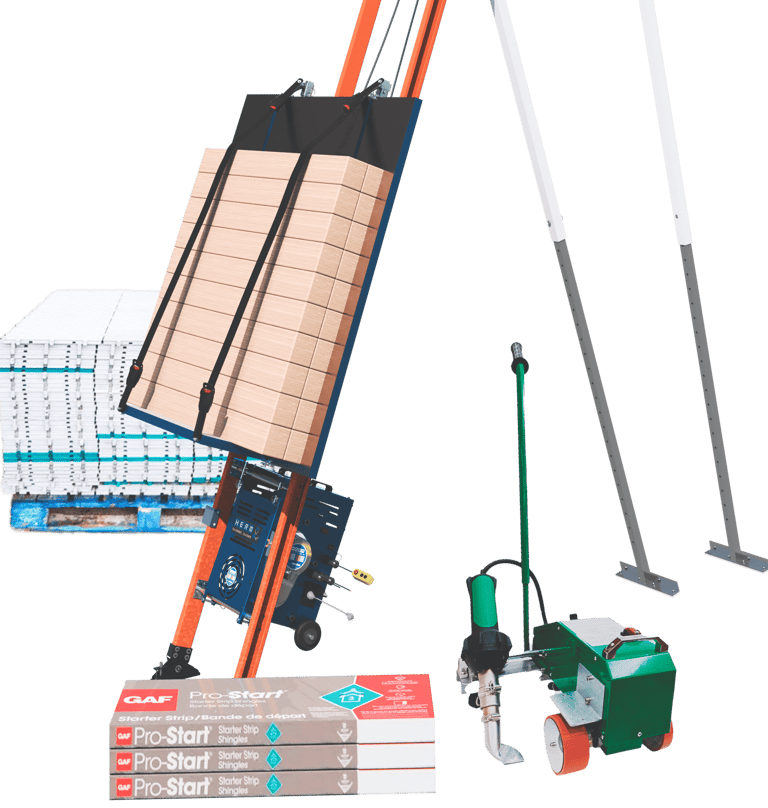

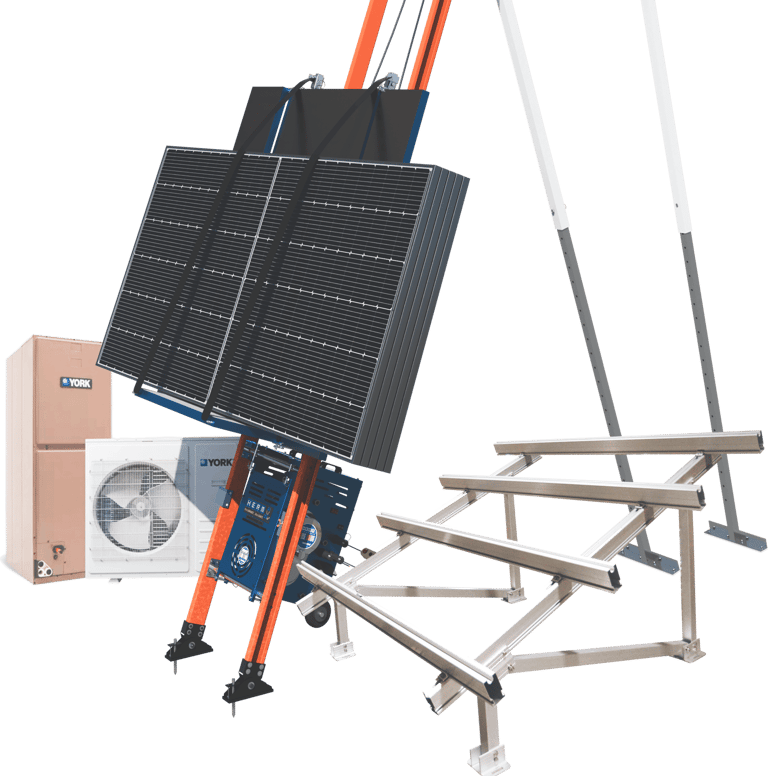

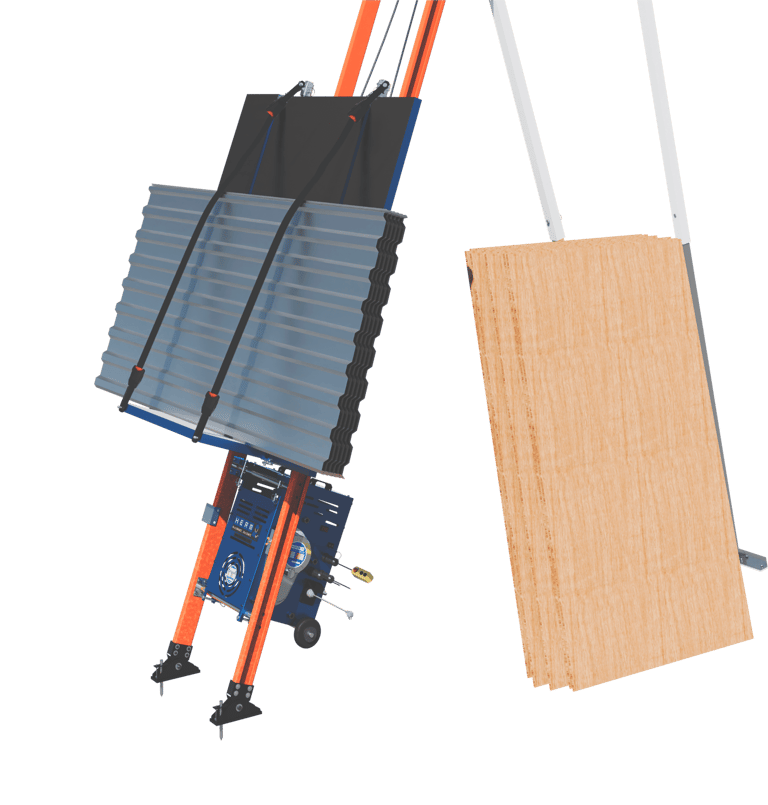

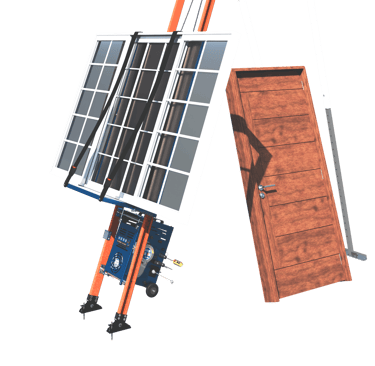

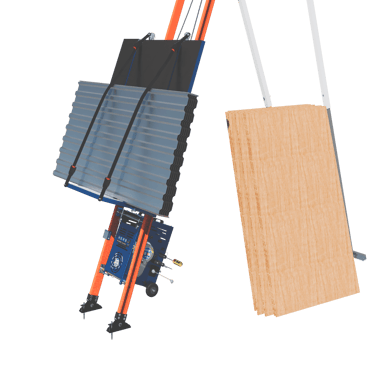

Transport Application Solar Panels, Doors & Windows, Drywall / Plasterboard, Timber Frames, Fixtures and fittings, cabinetry, Dishwasher, Dryer, AC System, ... anything up to 250kg/551lbs that can be secured for transport.
Width: 141cm/55.66ins. x Length: 150cm/59ins
Set-up Time: 20 - 25min.
No Tools Required
... Connect-and-Go
Ground
Support Braces Modules "I" & "J"
Design & Engineering Australia & German
Manufacturing Brazil, China & Malaysia
Standards Compliance ISO9000, AS1418.8, EN131, ANSI-ASC A14,5-2017

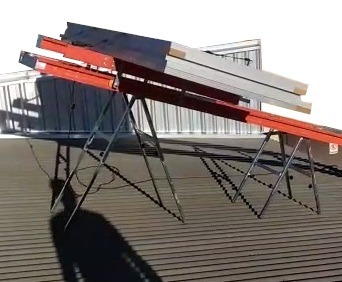

Rooftop Module ("H")
End-of-Run "A"
Frame Support
Eave Module (“E”)
can be adjusted and set to
match roof pitch ... from
5/dig pitch to 80/dig pitch
Rooftop Module ("G")
Frame Support/s
More module "G's" can be added to extend roof top coverage
Wall Support
Module " K"
Ground Supports'
Modules "I" & "J"
HERM250 Electric Winch
Cargo Chasses Module "L"
Engineered & Built to Last!
Australian & German Design and Engineering
[3] Electric Winch. Power-drive is a 2kW/2.7hp motor is housed in an easy to transport (wheeled)
‘plug-and-operate’ safety box *System Safety
[4a, 4b] Power Options: 110/120V 60Hz or in 230/240V 50Hz
[5] Weather/Dust Resistant Power Inlet (as per power option) *System Safety
[6] Lift Capacity Options: 250kg/550lbs or 300kg/660lbs.
[7] Transport/Travel Speed: 23m/75.4ft per minute (average).
[8] 9 Spring Electromagnetic Brake System / *System Safety
[9] Wire Cable: 6mm anti-rotation wire cable. Grade 1960, 19x7 load capacity of 25,5kN *System Safety
[4a] 110/120V - 60Hz
US/Canada Type B/3 Pin Power Plug
[4b] 220/240V - 50Hz
AU/EU/UK Type 1 or Type G
3 Pin Power Plug
HERM250 Electric Winch

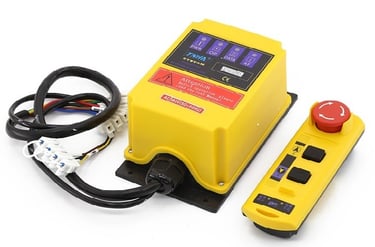

[1] Control Toggle-Switch” [“I-0-II”]

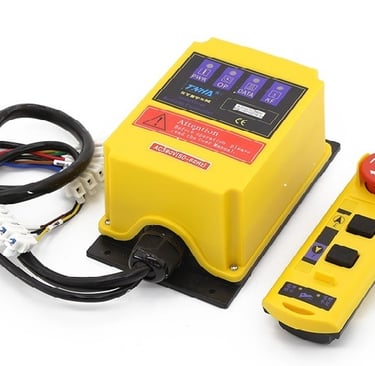

From the Control Panel, you can seamlessly transition from the 10m/32.8ft Wired Controller to the 100m/328.8ft Wireless (Remote) Controller - * Standard Equipment
[2] Limit Switches
2 x . Upper and Lower.
* Standard Equipment
Country Specific Power Inlet
AU/NZ - US/Canada - UK/EU
Design & Engineering Australia & German
Manufacturing Brazil, China & Malaysia
Standards Compliance ISO9000, AS1418.8, EN131, ANSI-ASC A14,5-2017
